The geostan R package supports a complete spatial analysis workflow with Bayesian models for areal data, including a suite of functions for visualizing spatial data and model results. geostan models were built using Stan, a state-of-the-art platform for Bayesian modeling.

Introductions to the software can be found at r-spatial.org and in the package vignettes.

Features include:

**Disease mapping and spatial regression**Statistical models for data recorded across areal units like states, counties, or census tracts.**Spatial analysis tools**Tools for visualizing and measuring spatial autocorrelation and map patterns, for exploratory analysis and model diagnostics.

**Observational uncertainty**Incorporate information on data reliability, such as standard errors of American Community Survey estimates, into any geostan model.**Missing and Censored observations**Vital statistics and disease surveillance systems like CDC Wonder censor case counts that fall below a threshold number; geostan can model disease or mortality risk for small areas with censored observations or with missing observations.**The RStan ecosystem**Interfaces easily with many high-quality R packages for Bayesian modeling.**Custom spatial models**Tools for building custom spatial models in Stan.

For public health research, geostan complements the surveil R package for the study of time trends in disease incidence or mortality data.

There are two ways to install geostan: directly from the package github repository or from the Comprehensive R Archive Network (CRAN).

Using your R console, you can install geostan from CRAN:

`install.packages("geostan")`

You can install geostan from github:

```
if (!require('devtools')) install.packages('devtools')
::install_github("connordonegan/geostan") devtools
```

If you are using Windows and installing with
`install_github`

, you may need to install Rtools first
(this is not needed when installing from CRAN). To install Rtools:

- Visit the Rtools site: https://cran.r-project.org/bin/windows/Rtools/
- Select the version that corresponds to the version of R that you have installed (e.g., R 4.3).
- After selecting the correct version, look for the “Install Rtools” section (just below the introductory text) and click on the “installer” to download it. For example, for Rtools43 (for R version 4.3), click on “Rtools43 installer.”
- Go to the
`.exe`

file you just downloaded and double-click to begin installation of Rtools.

If you are using Mac and installing with `install_github`

then you may need to install Xcode Command Line Tools first.

All functions and methods are documented (with examples) on the website reference page. See the package vignettes for more on exploratory spatial analysis, spatial measurement error models, spatial regression with raster layers, and building custom spatial model in Stan.

To ask questions, report a bug, or discuss ideas for improvements or new features please visit the issues page, start a discussion, or submit a pull request.

Load the package and the `georgia`

county mortality data
set:

```
library(geostan)
data(georgia)
```

This has county population and mortality data by sex for ages 55-64, and for the period 2014-2018. As is common for public access data, some of the observations missing because the CDC has censored them.

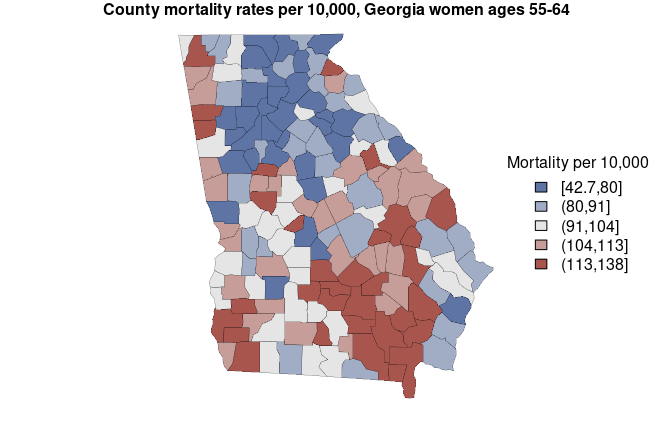

The `sp_diag`

function provides visual summaries of
spatial data, including a histogram, Moran scatter plot, and map. Here
is a visual summary of crude female mortality rates (as deaths per
10,000):

```
<- shape2mat(georgia, style = "B")
A #> Contiguity condition: queen
#> Number of neighbors per unit, summary:
#> Min. 1st Qu. Median Mean 3rd Qu. Max.
#> 1.000 4.000 5.000 5.409 6.000 10.000
#>
#> Spatial weights, summary:
#> Min. 1st Qu. Median Mean 3rd Qu. Max.
#> 1 1 1 1 1 1
<- georgia$rate.female * 10e3
mortality_rate sp_diag(mortality_rate, georgia, w = A)
#> 3 NA values found in x will be dropped from data x and matrix w
#> Warning: Removed 3 rows containing non-finite outside the scale
#> range (`stat_bin()`).
```

The following code fits a spatial conditional autoregressive (CAR)
model to female county mortality data. These models are used for
estimating disease risk in small areas like counties, and for analyzing
covariation of health outcomes with other area qualities. The R syntax
for fitting the models is similar to using `lm`

or
`glm`

. We provide the population at risk (the denominator for
mortality rates) as an offset term, using the log-transform. In this
case, three of the observations are missing because they have been
censored; per CDC criteria, this means that there were 9 or fewer deaths
in those counties. By using the `censor_point`

argument and
setting it to `censor_point = 9`

, the model will account for
the censoring process when providing estimates of the mortality
rates:

```
<- prep_car_data(A)
cars #> Range of permissible rho values: -1.661, 1
<- stan_car(deaths.female ~ offset(log(pop.at.risk.female)),
fit censor_point = 9,
data = georgia,
car_parts = cars,
family = poisson(),
cores = 4, # for multi-core processing
refresh = 0) # to silence some printing
#> 3 NA values identified in the outcome variable
#> Found in rows: 55, 126, 157
#>
#> *Setting prior parameters for intercept
#> Distribution: normal
#> location scale
#> 1 -4.7 5
#>
#> *Setting prior for CAR scale parameter (car_scale)
#> Distribution: student_t
#> df location scale
#> 1 10 0 3
#>
#> *Setting prior for CAR spatial autocorrelation parameter (car_rho)
#> Distribution: uniform
#> lower upper
#> 1 -1.7 1
```

Passing a fitted model to the `sp_diag`

function will
return a set of diagnostics for spatial models:

```
sp_diag(fit, georgia, w = A)
#> Using sp_diag(y, shape, rates = TRUE, ...). To examine data as (unstandardized) counts, use rates = FALSE.
#> 3 NA values found in x will be dropped from data x and matrix w
#> Warning: Removed 3 rows containing missing values or values
#> outside the scale range (`geom_pointrange()`).
```

The `print`

method returns a summary of the probability
distributions for model parameters, as well as Markov chain Monte Carlo
(MCMC) diagnostics from Stan (Monte Carlo standard errors of the mean
`se_mean`

, effective sample size `n_eff`

, and the
R-hat statistic `Rhat`

):

```
print(fit)
#> Spatial Model Results
#> Formula: deaths.female ~ offset(log(pop.at.risk.female))
#> Spatial method (outcome): CAR
#> Likelihood function: poisson
#> Link function: log
#> Residual Moran Coefficient: 0.0011525
#> WAIC: 1227.47
#> Observations: 156
#> Data models (ME): none
#> Inference for Stan model: foundation.
#> 4 chains, each with iter=2000; warmup=1000; thin=1;
#> post-warmup draws per chain=1000, total post-warmup draws=4000.
#>
#> mean se_mean sd 2.5% 20% 50% 80% 97.5% n_eff Rhat
#> intercept -4.674 0.002 0.089 -4.849 -4.730 -4.674 -4.621 -4.505 2362 1.000
#> car_rho 0.923 0.001 0.058 0.778 0.879 0.937 0.973 0.995 3319 1.000
#> car_scale 0.458 0.001 0.036 0.395 0.428 0.456 0.488 0.534 3618 0.999
#>
#> Samples were drawn using NUTS(diag_e) at Tue Sep 17 16:44:56 2024.
#> For each parameter, n_eff is a crude measure of effective sample size,
#> and Rhat is the potential scale reduction factor on split chains (at
#> convergence, Rhat=1).
```

Applying the `fitted`

method to the fitted model will
return the fitted values from the model - in this case, the fitted
values are the estimates of the county mortality rates. Multiplying them
by 10,000 gives mortality rate per 10,000 at risk:

```
<- fitted(fit) * 10e3
mortality_est <- georgia$NAME
county_name head( cbind(county_name, mortality_est) )
#> county_name mean sd 2.5% 20% 50%
#> fitted[1] Crisp 101.48785 9.604829 83.99009 93.31163 101.17610
#> fitted[2] Candler 136.99885 15.905146 109.27395 123.11823 136.31355
#> fitted[3] Barrow 94.25470 6.071597 82.80270 89.20105 94.16678
#> fitted[4] DeKalb 59.76214 1.579194 56.72962 58.44624 59.75766
#> fitted[5] Columbia 53.33958 3.257549 47.19615 50.56654 53.28387
#> fitted[6] Cobb 54.12983 1.498260 51.24933 52.85101 54.10133
#> 80% 97.5%
#> fitted[1] 109.30723 121.16598
#> fitted[2] 150.17348 169.77611
#> fitted[3] 99.19399 106.44508
#> fitted[4] 61.07091 62.86805
#> fitted[5] 56.08790 59.78086
#> fitted[6] 55.42278 57.02966
```

The mortality estimates are stored in the column named “mean”, and the limits of the 95% credible interval are found in the columns “2.5%” and “97.5%”.

Details and demonstrations can be found in the package help pages and vignettes.

If you use geostan in published work, please include a citation.

Donegan, Connor (2022) “geostan: An R package for Bayesian spatial
analysis” *The Journal of Open Source Software*. 7, no. 79: 4716.
https://doi.org/10.21105/joss.04716.

```
@Article{,
title = {{geostan}: An {R} package for {B}ayesian spatial analysis},
author = {Connor Donegan},
journal = {The Journal of Open Source Software},
year = {2022},
volume = {7},
number = {79},
pages = {4716},
doi = {10.21105/joss.04716},
}
```
